Cartridge Filter Housing

SSMPL manufacture in house cartridge filter housings of various sizes and MOC. Housings are designed with swing bolts closure and hinged covers, making filter element change out quick and easy. We do manufacture custom built housings as to suit the customers need. Our filter housings can be inline and offline as to make easy pipe line allignment and better asthetic look.

We do provide with colour coded DP gauges with electrical signal so that it can give alarm against choking of filter element and also interlock with pump as to timely switch off to avoid rupture of filter elements & by pass to down stream.

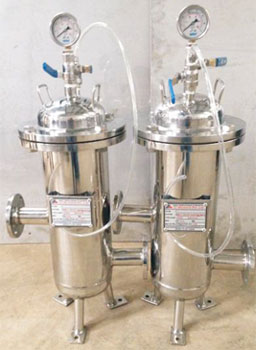

Offline Filter Housing

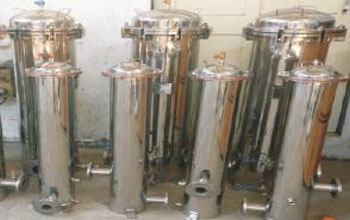

Multi-round Various Types Housing

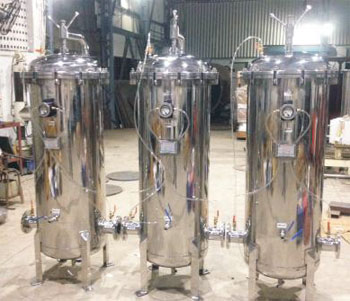

Multi-round Inline Swivel type Housing

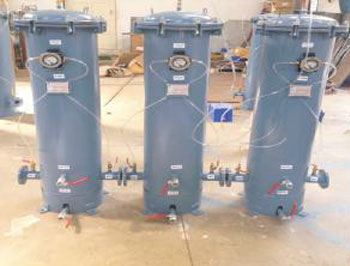

MS Multi-round Cartridge Filter Housing
Horizontal Housing

FEATURES OF CARTRIDGE FILTER HOUSING

  • High flow rate & Low pressure drop.
  • High dirt holding capacity
  • Option for Vertical and Horizontal Operation.
  • In line inlet and outlet with end connection of NPT/BSP threaded, ANSI/BS STD flanged and TC clamp etc.
  • Swing bolt closure and davit arm to make easy change over.
  • Can be handled by single spanner and single person.
  • Single point draining with minimum hold up volume.
  • Accommodate 5″,10″, 20″, 30″ and 40″ cartridges.
  • Square type “O” ring for proper sealing.
  • Available with MOC of CS, CSRL, MS, SS-304, SS-304L, SS-316, SS-316L, Jacketed and UPVC etc.
  • Suitable for cartridge end Code of DOE, Code-7 with 222 & 226, Code-O and SDPMI etc.
  • Customized design can be provided.
  • Meet third party inspection and test procedure.
  • MOC of gasket and “O” ring Silicon, Viton, EPDM, Neoprene and PTFE etc.
  • Surface finish-Sand blasting, Mechanical polishing, Pickling and Painting etc (as per industrial standard)


Experience: 19 years in NAS Filtration out of 28 years in Filtration
